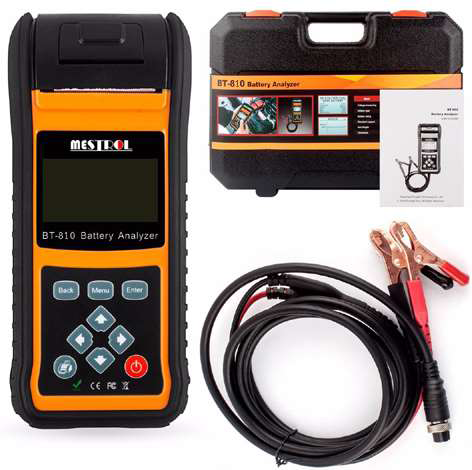

BT800 Automotive Battery Tester and System Analyzer

BT800 serials battery tester of Mestrol take the advancing impedance measuring technology, done the deeply scan to battery in 3 - 4 seconds, and give a highly accuracy and reliable judgement of SOH. The operation is easy and simple, and no heating, no spark when testing.

BT800 serials battery tester also could test and analyze the starting system and charging system. The user just needs following the instructions, and will be easy to get the starting, charging, and ripple test. These tests will be helpful for electrical system defects found (like short or open).

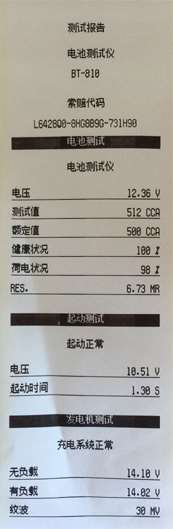

BT800 serials built in thermal printer, could printout the test result for customer check on time, or be the claim voucher.

Mestrol battery tester as an essential tool have been used on warranty test, preventive maintenance, and claim test by passenger car, commercial vehicle manufactures and after marketing.

Features:

• Measure 6V and 12V batteries

• Support 12V and 24V starting and charging test

• Compatible with idle start-stop battery and system test

• Diodes ripple measuring

• CCA measuring range: 100CCA ~ 3000CCA

• Voltage measuring range: 1V ~ 40V

• Built-in 58mm thermal printer

• Large screen display with back lights

• Friendly operation interface and displaying

• Built-in real time clock, the clock battery life cycle 5 years

• Support SD card data storage function

• Generate warranty code for warranty service

• Test cable removable

Battery Type Support:

Flooded

AGM (Spiral and flat plate)

GEL

ISS (EFB and AGM)

Battery Standard Support:

CCA， SAE，JIS，CA，MCA，EN，DIN，IEC

Language Optional:

English, German, French, Spanish, Dutch, Italian, Swedish, Russian, Polish, Portuguese, Turkish, Japanese, Korean, Chinese

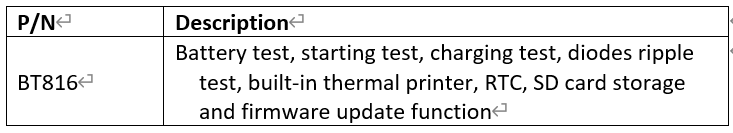

Model Selection:

Note: All battery tester type above could provide customization, such as QC test, Pre-inspection test, and so on.
