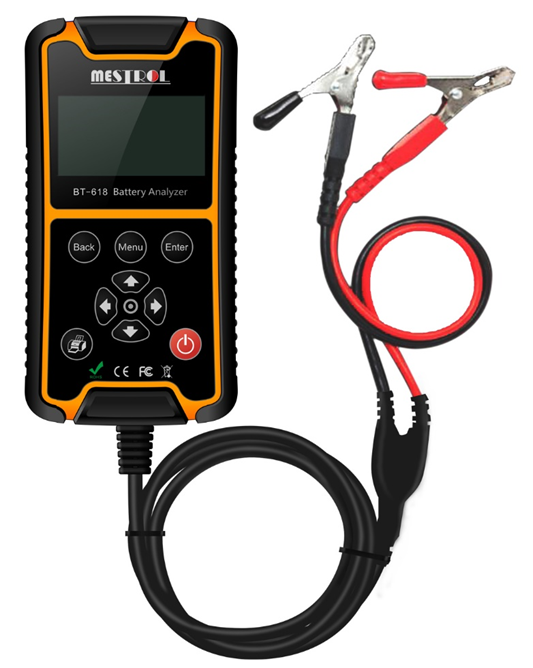

BT600 Automotive Battery Tester and System Analyzer

BT600 serials battery tester of Mestrol take the advancing impedance measuring technology, done the battery testing in 3 - 4 seconds. The easy operation, no heating and no spark in testing are very popular with our customers.

BT600 serials battery tester could make an analyzing for vehicle’s electrical system, including starting and charging. The user just needs to operate under screen guide simply.

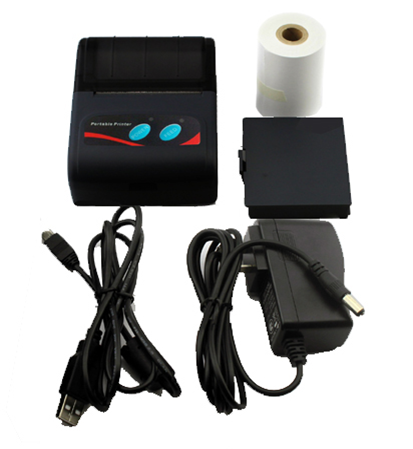

BT600 serials battery tester could select external Bluetooth printer as an optional, it will be convenience for test result printout and used as claim voucher.

Features:

• Measure 6V and 12V batteries

• Support 12V and 24V starting and charging test

• Compatible with idle start-stop battery and system test

• Diodes ripple measuring

• CCA measuring range: 100CCA ~ 3000CCA

• Voltage measuring range: 1V ~ 30V

• Support SD card data storage (Micro SD/TF card)

• Real time clock function help to review history data with date & time

• Test/Warranty code generation function

• Optional extern Bluetooth printer

• Large screen display with back lights

• Friendly operation interface and displaying

Battery Type Support:

Flooded

AGM (Spiral and flat plate)

GEL

ISS (EFB and AGM)

Battery Standard Support:

CCA， SAE，JIS，CA，MCA，EN，DIN，IEC

Language Optional:

English, German, French, Spanish, Dutch, Italian, Swedish, Russian, Polish, Portuguese, Turkish, Japanese, Korean, Chinese

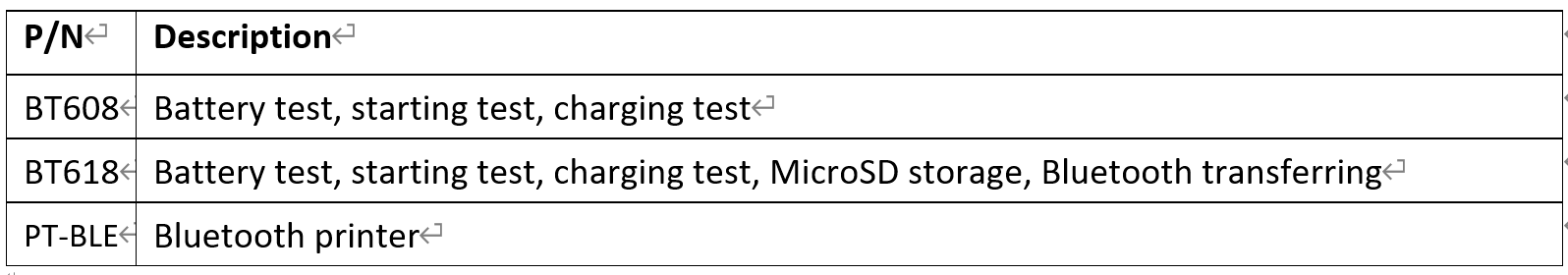

Model Selection:

Note: All battery tester type above could provide customization, such as QC test, Pre-inspection test, and so on.
